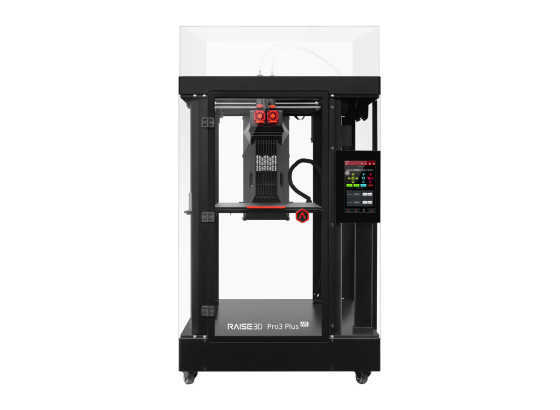

Raise3D Pro3 plus HS
High-Speed Industrial Composite 3D PrintingThe Raise3D Pro3 HS Series elevates industrial desktop 3D printing with integrated Hyper FFF® technology, delivering exceptional speed, precision, and material performance. Designed for demanding composite applications, it features an enhanced motion control system with a closed-loop stepper motor, optimized mechanics, and a reinforced all-metal frame. The result is a powerful, efficient, and low-maintenance printer ideal for engineering, manufacturing, and end-use part production.
- Hyper FFF® High-Speed Performance
- Industrial-Grade Accuracy & Stability
- Advanced Composite Material Capability
Features and Benefits
Explore the advanced features and real-world benefits that make the Pro3 HS Series a powerhouse for industrial composite 3D printing.
Printer Specifications
A detailed technical overview of performance, speed, materials, and mechanical capabilities.
- Print Technology: Fused Filament Fabrication (FFF)
Print Head System: Single Extruder Print: 300 × 300 × 605 mm- Build Volume (W × D × H): Dual-head with Electronic Lifting System
- Filament Diameter: 1.75 mm
- Max Printing Speed: 500 mm/s
- Nozzle Diameter: 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
- Max Nozzle Temperature: 320ºC
- Layer Height: The Pro3 HS Series is compatible with 0.2, 0.4, 0.6, 0.8 and 1.0 mm nozzles, and
the layer height can vary between 0.05-0.6 mm.
To achieve stable print results, when using 0.4 mm nozzles, we recommend using
a layer height between 0.1-0.3 mm. - Material Type: Hyper Core: PPA CF/ PPA GF/ ABS CF
Hyper Speed: PLA/ ABS
Industrial: PPA CF/ PPA GF/ PET CF/ PET GF/ PETG ESD/ PET Support/ PPA Support
Premium: PLA/ ABS/ ASA/ PETG/ PC/ TPU-95A/ PVA+
Materials
Power Your Prints: Premium Materials for Every Need
Hyper Speed PLA Pro
Raise3D Hyper Speed PLA Pro is a composite filament designed for the Hyper FFF® system. Enhanced with carbon powder and additives, it offers a matte finish that becomes smoother with the ironing function. Though its interlayer adhesion is slightly lower than Premium PLA, it provides greater rigidity, tensile strength, and impact resistance—making it ideal for… Continue reading Raise3D Pro3 plus HS
PPS CF
Raise3D Industrial PPS is a 10CF% carbon fiber–reinforced polyphenylene sulfide (PPS) filament designed for high-performance applications. It offers exceptional heat resistance (HDT 260°C), outstanding chemical stability against acids, alkalis, and solvents, and excellent flame retardancy certified to the UL94 V0 standard.
Hyper Speed PET CF
Raise3D Hyper Speed PET CF is a 15% carbon fiber–reinforced PET filament designed for Hyper FFF™ (L2, 300 mm/s) and high-performance applications. It offers excellent strength (E > 4.5 GPa), heat resistance (HDT > 110°C), low moisture absorption, and reliable printability. With long-term dimensional stability and a smooth matte finish, it’s ideal for engineering-grade parts… Continue reading Raise3D Pro3 plus HS
Hyper Speed PETG CF
Raise3D Hyper Speed PETG CF is an 8% recycled carbon fiber–reinforced PETG filament optimized for Hyper FFF® technology (up to L2, 300 mm/s). It retains PETG’s excellent printability while offering a matte carbon-fiber texture, enhanced strength, heat resistance, and dimensional stability. Ideal for prototyping and end-use parts, it delivers superior surface quality, reliability, and cost… Continue reading Raise3D Pro3 plus HS
PPA GF
Raise3D Industrial PPA GF is a glass fiber–reinforced composite filament made from PPA (high-performance nylon). Compared to standard polyamides like PA6, it offers higher melting and glass transition temperatures, lower moisture absorption, and better dimensional stability. With 15% short glass fibers, it provides enhanced strength and durability, making it ideal for end-use applications in automotive,… Continue reading Raise3D Pro3 plus HS
PPA Support
Raise3D Industrial PPA Support Filament is a break-away material designed for PPA printing. It provides strong adhesion and stability during printing, reducing warpage and improving surface quality on overhangs and cavities. After printing, it can be easily removed by hand or tools and is a more cost-effective option than water-soluble supports.
PPA CF
Raise3D Industrial PPA Support Filament is a break-away material designed for PPA printing. It provides strong adhesion and stability during printing, reducing warpage and improving surface quality on overhangs and cavities. After printing, it can be easily removed by hand or tools and is a more cost-effective option than water-soluble supports.
PET GF
Raise3D Industrial PET GF is a glass fiber-reinforced composite filament made from PET (Polyethylene terephthalate). The well-dispersed glass fibers enhance rigidity, strength, and resistance to heat and chemicals. After annealing, it achieves heat resistance up to 120 °C, with a tensile modulus over 4.1 GPa and strength above 70 MPa. Compared to glass fiber-reinforced Nylon,… Continue reading Raise3D Pro3 plus HS
PET CF
Raise3D Industrial PET CF is a 15 wt.% carbon fiber-reinforced PET filament offering high rigidity, strength, and heat resistance up to 150 °C. It provides excellent printability, dimensional stability, and low moisture absorption, making it ideal for durable, cost-effective end-use parts like jigs, fixtures, and functional components.
Hyper Core ABS CF15
Hyper Core ABS CF15 offers excellent impact toughness, chemical resistance, and low moisture absorption. Its optimized fiber distribution enhances Z-direction strength and nozzle life, making it ideal for high-performance, stable, and efficient industrial-scale production.
Hyper Core PPA GF25
The Hyper Core filament line represents a new generation of professional, fiber-reinforced composite materials for Hyper FFF®. Designed for heavy-duty and end-use parts, these filaments offer superior strength, stiffness, and heat resistance while overcoming typical high-speed printing challenges like reduced flowability, weak interlayer bonding, and nozzle wear.
Hyper Core PPA CF25
The Hyper Core filament line is a new generation of professional, fiber-reinforced composite materials for Hyper FFF®. These filaments are ideal for industrial, end-use, and heavy-duty applications requiring superior strength, stiffness, and heat resistance. However, high-speed printing with such materials poses challenges like reduced flowability, weaker interlayer bonding, and faster nozzle wear.
PETG ESD
Raise3D Industrial PETG ESD is a carbon nanotube-filled, electrostatic discharge-safe filament offering excellent printability, chemical resistance, and ESD protection. Ideal for automotive, aerospace, manufacturing, and electronics applications, it’s perfect for housings, casings, jigs, and fixtures requiring reliable static control.
Hyper Speed PLA
Hyper Speed PLA is specially designed for Hyper FFF® printing, enabling speeds up to 300 mm/s through optimized molecular weight and flowability. It offers faster melting, quicker cooling, and excellent surface quality with strong interlayer bonding and improved impact resistance. Ideal for prototyping, models, props, jigs, and fixtures, it provides high dimensional accuracy even in… Continue reading Raise3D Pro3 plus HS
Applications
Ideal for functional prototypes, production tooling, engineering components, and end-use parts requiring strength and durability.
Raise3D ideaMaker
ideaMaker is an advanced slicing and workflow management software designed to simplify high-speed composite printing on the Pro3 HS Series. With automated optimization, flexible slicing profiles, and seamless integration across Raise3D printers, it delivers a streamlined, efficient, and dependable printing experience for industrial user
