BMF microArch®S130

Precision Redefined for Micro-Scale 3D Printing

The microArch® S130 is a cutting-edge micro 3D printing system powered by Projection Micro Stereolithography (PµSL) technology. Designed for applications demanding extreme precision, it delivers 2µm optical resolution and exceptional surface quality for micro-structures that traditional manufacturing cannot achieve.

Engineered for R&D labs, medical device development, microfluidics, electronics, and advanced material research, the S130 enables users to produce highly detailed parts with consistent accuracy, excellent repeatability, and superior dimensional control.

Ultra-High 2µm Optical Resolution
Low Layer Thickness Capability
Advanced Optical Monitoring System
Air-Floated Precision Platform

Get a Quote Download Brochure

Features and Benefits
Printer Specs
Materials
Applications
Get in Touch

Features and Benefits

Ultra-High 2µm Optical Resolution

Delivers exceptional micro-level detail, enabling the production of highly intricate and precise 3D printed structures.

Low Layer Thickness Printing (5–20µm)

Supports ultra-thin layers for superior surface finish and accurate vertical feature reproduction.

Projection Micro Stereolithography (PµSL) Technology

Advanced light-based printing technology ensures uniform curing and consistent accuracy across every layer.

Intelligent Optical Monitoring System

Built-in auto-focus monitoring maintains optimal focus throughout the printing process for reliable results.

Air-Floated Precision Printing Platform

Enhances build stability and minimizes vibration, improving surface quality and dimensional accuracy.

Powerful Printing & Slicing Software

User-friendly software with customizable parameters allows full control over print settings and material behavior.

True Micro-Scale Manufacturing

Enables production of micro-features that are impossible to achieve with conventional 3D printing technologies.

Superior Surface Quality

Ultra-thin layers and stable curing result in smooth finishes, reducing the need for post-processing.

Consistent and Repeatable Accuracy

High-precision optics and auto-focus monitoring ensure repeatable results across multiple builds.

Faster R&D and Prototyping Cycles

Reliable print quality minimizes trial-and-error, helping accelerate product development and innovation.

Ideal for High-Precision Applications

Perfectly suited for medical devices, microfluidics, electronics, and advanced research applications.

Flexible and User-Controlled Operation

Customizable software settings allow users to adapt the system for different materials and design requirements.

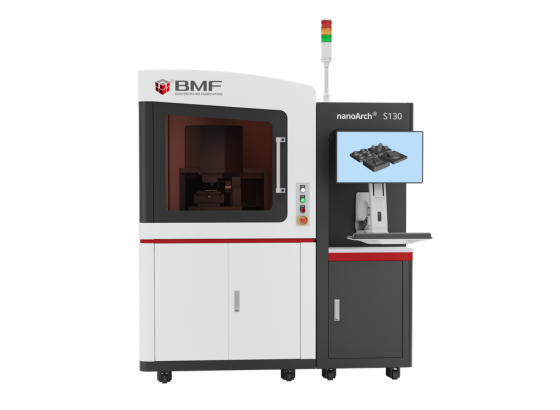

Printer Specifications

Light Source: UV LED(405nm)
Printing Material: Photosensitive resin
Optical Resolution: 2μm
Layer Thickness: 5~20μm
Build Size: Mode 1: single exposure mode 3.84mm(L)×2.16mm(W)×10mm(H)
Mode 2: stitching exposure mode 38.4mm(L)×21.6mm(W)×10mm(H)
Mode 3: micro array mode 50mm(L)×50mm(W)×10mm(H)
Input Data File Format: STL
External Dimensions: 1720mm(L)×750mm(W)×1820mm(H)
Total Weight: 550kg
Power Supply: 220~240V AC, 50/60Hz, 2kW

Download Brochure

Materials

View All Materials

BMF HTL Resin

HTL is a high performance engineering material with high strength, rigidity, and heat resistance, able to withstand temperatures up to 114°C. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch®S130

View Specs

BMF BIO Resin

BIO is a biocompatible resin suitable for non-implantable medical applications. BIO can undergo sterilization and has passed numerous ISO biocompatibility tests. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch®S130

View Specs

BMF HT200

HT 200 is a high temperature material that can withstand temperatures up to 200°C with high strength and durability, perfect for end use applications. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it… Continue reading BMF microArch®S130

View Specs

BMF Tough Resin

TOUGH is a rigid, robust engineering material with a good combination of strength and elongation. TOUGH can be used to produce end-use parts. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers… Continue reading BMF microArch®S130

View Specs

BMF AL Alumina Ceramic

AL (Alumina) Ceramic is perfect for applications involving tooling, casings and housings, and medical devices – able to withstand high temperatures with high strength properties and chemical resistance. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to… Continue reading BMF microArch®S130

View Specs

BMF HTF Resin

HTF is a heat resistant and tough resin with a high HDT, tensile strength, and biocompatibility. Perfect for high pressure steam applications such as autoclaving. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins,… Continue reading BMF microArch®S130

View Specs

BMF SR Resin

SR is a soluble resin that can be used as a sacrificial material to print single-use molds to manufacture parts in other materials. SR dissolves in a 5:95 solution of sodium hydroxide to distilled water. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice.… Continue reading BMF microArch®S130

View Specs

BMF FR Resin

FR is a flame retardant material with a high heat deflection temperature that has a UL94 V-0 flammability rating at 2.0mm. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch®S130

View Specs
