HBD 500
Industrial-Grade Metal 3D PrinterMeet the HBD 500, a high-performance metal additive manufacturing system engineered for continuous, large-scale production. With a spacious build volume of 430 × 520 × 520 mm, multi-laser configurations, and intelligent powder management, the HBD 500 delivers consistent, high-quality parts at industrial throughput. Whether you’re prototyping or running batch production, this printer is built for reliability, precision, and efficiency in demanding environments.
- Large-Format Multi-Laser System
- Intelligent Closed-Loop Powder Management
- High Precision & Stable Build Quality
Features and Benefits
Core Features & Benefits

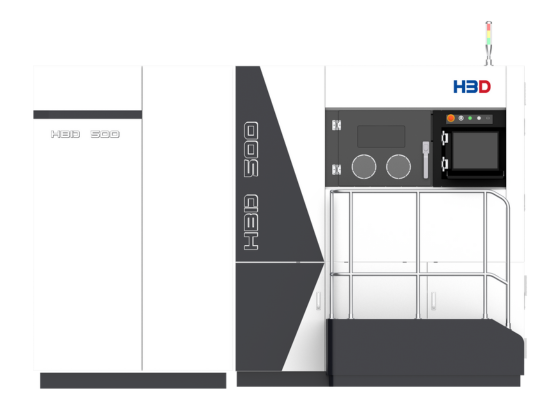

Printer Specifications
HBD 500 Technical Specifications
- Build Volume: 430mm x 520mm x 520mm(height incl. build plate)
- Laser Power: 2 Lasers, 500W/1000W
4 Lasers, 500W/1000W
6 Lasers, 500W/1000W - Layer Thickness: 20μm-120μm
- Scanning Track Width: 70μm-200μm
- Scanning Speed: ≤10m/s
- Oxygen Content: ≤100ppm
- Protective Atmosphere: Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection coefficient ≥ 99%
- Relative Density: 99.9%+
- Typical Accuracy: 0.05-0.2mm
- Metal Powder: Titanium alloy, aluminium alloy, high temperature alloy, stainless steel, mold steel, etc.
- Process Parameter Configuration: Tailored parameter set for the specific application, user-modifiable
- Weight: Est. 4500kg
- External Dimensions: 2280mm x 1560mm x 2570mm
- Power Supply: 500W: AC380V,50/60Hz, peak power ≤l6-16.5kW, average power ≤6.5-7kW
1000W: AC380V,50/60Hz, peak power ≤l7-18kW, average power ≤7.5-8.5kW
Materials
Power Your Prints: Premium Materials for Every Need
Tool Steel
It is a pre-alloyed tool steel powder designed for tooling applications. This widely used tooling steel is characterized by high strength, excellent toughness, good machinability, and reliable thermal fatigue resistance, ensuring long service life and dimensional stability in plastic moulding operations
Titanium alloys
Ti6Al4V is a titanium alloy offering excellent mechanical strength, corrosion resistance, lightweight performance, and biocompatibility—ideal for aerospace components, medical implants, dental prosthetics, and high-performance functional parts.
High temperature alloy
It is a pre-alloyed nickel-based superalloy powder optimized for additive manufacturing, providing high strength and stability at elevated temperatures along with excellent oxidation and corrosion resistance.
Aluminum alloys
A pre-alloyed aluminum powder, typical casting alloy, with good casting properties, used for printing of thin walls and complex geometric designs. The alloy contains silicon/magnesium, which gives a significant increase in strength and hardness, as well as good dynamic properties.
Hastelloy
A high-performance nickel-based superalloy offering superior strength, oxidation resistance, and corrosion resistance for demanding high-temperature and chemically aggressive environments.
Tungsten
Tungsten is a high-density refractory metal offering exceptional radiation shielding, corrosion resistance, and extreme temperature stability, making it ideal for imaging equipment, aerospace, nuclear, and high-performance industrial applications requiring durable, high-precision components.
Tantalum
A high-strength, heavy, and hard refractory metal with excellent ductility, outstanding corrosion resistance, and biocompatibility, enabling the production of high-density, mechanically stable components for complex medical implants and custom aerospace applications through its high melting point.
Stainless steel
Austenitic stainless steel 316L, with high strength and corrosion resistance, could drop to low temperature in a wide temperature range. The overall performance of the steel is better than 310 and 304 stainless steel, 316L stainless steel also has good resistance to chloride erosion performance.
cobalt-chrome alloy
An ingenious mixture of pre-alloyed powders to print parts in a cobalt-chrome-molybdenum superalloy. This type of superalloy has very good mechanical properties (strength, hardness, etc.), corrosion resistance and heat resistance.
Applications
Industrial Applications & Use Cases
Open Software & Process Parameter Flexibility
The HBD 500 comes with a fully open software package, giving you full control over process parameters and enabling deep customization. You can configure laser power, scanning strategy, layer thickness, and more — allowing you to fine-tune printing for different metals or specific part geometries. Additionally, you can work with a pre-equipped parameter package, minimizing the R&D burden while still enabling tuning for advanced use cases.
