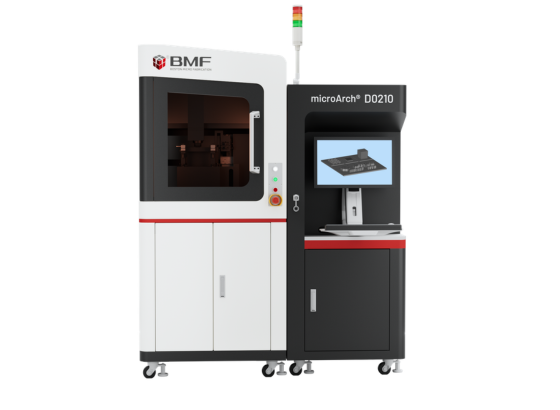

BMF microArch®D0210

Next-Generation Micro-Scale Additive Manufacturing

The microArch® D0210 is an advanced micro-scale 3D printing system designed for applications that demand extreme accuracy, fine feature resolution, and exceptional surface finish. Built on projection micro-stereolithography (PµSL) technology, the D0210 enables manufacturers, researchers, and innovators to produce complex micro-parts that are impossible to achieve with conventional additive or subtractive methods.
Ideal for industries such as medical devices, electronics, microfluidics, optics, and advanced R&D, the microArch® D0210 bridges the gap between prototyping and production-ready micro components.

Ultra-High Resolution Printing
Exceptional Surface Finish
Proven PµSL Technology
Production-Ready Reliability

Get a Quote

Features and Benefits
Printer Specs
Materials
Applications
Get in Touch

Features and Benefits

Ultra-High Resolution Micro Printing

Enables the creation of extremely fine features and intricate geometries with exceptional accuracy at the micro scale.

Projection Micro-Stereolithography (PµSL) Technology

Uses advanced light projection to cure entire layers at once, ensuring precision and uniformity across every build.

Exceptional Surface Finish

Delivers smooth, high-quality surfaces directly from the printer, minimizing visible layer lines.

High Dimensional Accuracy & Repeatability

Maintains consistent part quality across multiple builds with precise layer control and stable processing.

Material Compatibility for Functional Parts

Supports a range of photopolymer materials suited for functional testing and end-use applications.

Compact, Production-Ready System Design

Engineered for laboratory and industrial environments with a small footprint and robust construction.

Enables Complex Micro-Scale Designs

Unlocks design freedom to manufacture parts that are impossible to produce using traditional machining methods.

Reduces Post-Processing Time

High surface quality straight from printing minimizes polishing and finishing requirements.

Improves Product Development Speed

Fast and reliable printing accelerates prototyping and short-run production cycles.

Ensures Consistent, Reliable Output

Repeatable accuracy supports dependable results for both R&D and production applications.

Expands Application Possibilities

Ideal for microfluidics, medical devices, electronics, optics, and advanced research applications.

Optimizes Space and Workflow Efficiency

Compact system design allows easy integration into existing labs or manufacturing setups.

Printer Specifications

Light Source: UV-LED (405nm)
Printing Material: Photosensitive Resin
Exposure Resolution: 10µm and 25μm
XY Printing Resolution: 10µm and 25μm
Layer Thickness: 10μm~50μm
Surface Roughness: 0.4-0.8µm Ra (top)
1.5-2.5µm Ra (side)
Printing Area: 100 × 100 × 50mm
Input Data File Format: STL
Power Supply: 2000w
External Dimensions: 1350(L) × 900(W) × 1950mm(H)
Total Weight: 500kg

Materials

View All Materials

BMF HTL Resin

HTL is a high performance engineering material with high strength, rigidity, and heat resistance, able to withstand temperatures up to 114°C. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch®D0210

View Specs

BMF BIO Resin

BIO is a biocompatible resin suitable for non-implantable medical applications. BIO can undergo sterilization and has passed numerous ISO biocompatibility tests. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch®D0210

View Specs

BMF HT200

HT 200 is a high temperature material that can withstand temperatures up to 200°C with high strength and durability, perfect for end use applications. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it… Continue reading BMF microArch®D0210

View Specs

BMF AL Alumina Ceramic

AL (Alumina) Ceramic is perfect for applications involving tooling, casings and housings, and medical devices – able to withstand high temperatures with high strength properties and chemical resistance. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to… Continue reading BMF microArch®D0210

View Specs

BMF HTF Resin

HTF is a heat resistant and tough resin with a high HDT, tensile strength, and biocompatibility. Perfect for high pressure steam applications such as autoclaving. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins,… Continue reading BMF microArch®D0210

View Specs

BMF SR Resin

SR is a soluble resin that can be used as a sacrificial material to print single-use molds to manufacture parts in other materials. SR dissolves in a 5:95 solution of sodium hydroxide to distilled water. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice.… Continue reading BMF microArch®D0210

View Specs

BMF FR Resin

FR is a flame retardant material with a high heat deflection temperature that has a UL94 V-0 flammability rating at 2.0mm. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch®D0210

View Specs
