BMF microArch® S230A

microArch® S230 – Ultra-High Resolution 2μm 3D Printe

The microArch® S230 represents the pinnacle of ultra-high resolution additive manufacturing. Designed for applications demanding extreme precision, this 2μm resolution 3D printer delivers exceptional surface quality, tight dimensional tolerances, and true-to-CAD accuracy. Ideal for micro-scale components, the system supports a wide range of engineering and functional materials, enabling realistic prototypes that closely resemble final production parts.

Get a Quote Download Brochure

Features and Benefits
Printer Specs
Materials
Applications
Get in Touch

Features and Benefits

Ultra-High Resolution Printing Technology

Ultra-High Resolution Optics

Delivers precise layer definition for micro-scale geometries.

2μm Pixel Accuracy

Ensures sharp edges and intricate feature reproduction.

Precision Motion Control

Maintains consistent accuracy across the entire build area.

Stable Light Engine

Provides uniform curing for repeatable, high-quality prints.

Material Flexibility

Supports multiple resin types for functional and visual prototypes.

Compact Industrial Design

Engineered for laboratory, R&D, and precision manufacturing environments.

Exceptional Surface Finish

Produces smooth, polished surfaces with minimal post-processing.

Tight Dimensional Tolerances

Ideal for applications requiring micron-level accuracy.

Reliable Print Consistency

Ensures repeatable results across multiple builds.

Faster Prototyping Cycles

Reduces development time for high-precision parts.

Design Validation Confidence

Accurately validates micro-features before production.

Cost-Effective Micro Manufacturing

Minimizes tooling and iteration costs for complex designs.

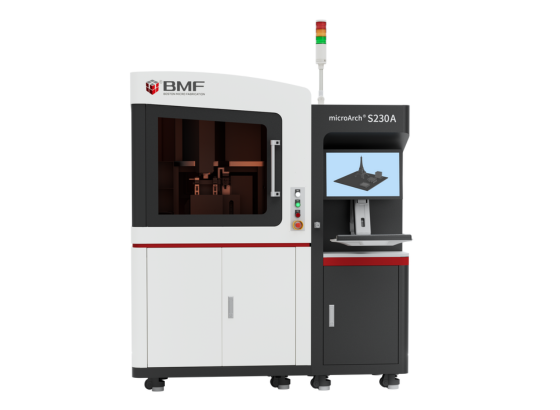

Printer Specifications

Precision-Driven Technical Specifications

Light Source: UV LED(405nm)
Printing Material: Photosensitive resin/ceramic slurry
Optical Resolution: 2μm
Layer Thickness: 5~20μm
Build Size: Mode 1: single exposure mode 3.84mm(L)×2.16mm(W)×50mm(H)
Mode 2: stitching exposure mode 50mm(L)×50mm(W)×50mm(H)
Mode 3: micro array mode 50mm(L)×50mm(W)×50mm(H)
Input Data File Format: STL
External Dimensions: 1720mm(L)×750mm(W)×1820mm(H)
Total Weight: 660kg
Power Supply: 220~240V AC, 50/60Hz, 2kW

Download Brochure

Materials

Power Your Prints: Premium Materials for Every Need

View All Materials

BMF HTL Resin

HTL is a high performance engineering material with high strength, rigidity, and heat resistance, able to withstand temperatures up to 114°C. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch® S230A

View Specs

BMF BIO Resin

BIO is a biocompatible resin suitable for non-implantable medical applications. BIO can undergo sterilization and has passed numerous ISO biocompatibility tests. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch® S230A

View Specs

BMF HT200

HT 200 is a high temperature material that can withstand temperatures up to 200°C with high strength and durability, perfect for end use applications. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it… Continue reading BMF microArch® S230A

View Specs

BMF Tough Resin

TOUGH is a rigid, robust engineering material with a good combination of strength and elongation. TOUGH can be used to produce end-use parts. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers… Continue reading BMF microArch® S230A

View Specs

BMF AL Alumina Ceramic

AL (Alumina) Ceramic is perfect for applications involving tooling, casings and housings, and medical devices – able to withstand high temperatures with high strength properties and chemical resistance. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to… Continue reading BMF microArch® S230A

View Specs

BMF HTF Resin

HTF is a heat resistant and tough resin with a high HDT, tensile strength, and biocompatibility. Perfect for high pressure steam applications such as autoclaving. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins,… Continue reading BMF microArch® S230A

View Specs

BMF SR Resin

SR is a soluble resin that can be used as a sacrificial material to print single-use molds to manufacture parts in other materials. SR dissolves in a 5:95 solution of sodium hydroxide to distilled water. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice.… Continue reading BMF microArch® S230A

View Specs

BMF FR Resin

FR is a flame retardant material with a high heat deflection temperature that has a UL94 V-0 flammability rating at 2.0mm. BMF’s open micro 3D printing system allows you to use its specially formulated liquid polymers or materials of your choice. With 20,000 cp capability and access to thousands of resins, it offers maximum application… Continue reading BMF microArch® S230A

View Specs
