3D Systems PSLA 270
High-Speed, Precision Projection SLA for Real ProductionExperience breakthrough speed, accuracy and reliability with the PSLA 270, a next-generation projection-based SLA system engineered for demanding manufacturing and service bureau environments.
- Ultra-Fast Dual Projector Curing
- 90µm Pixel Precision
- Large Build Volume in a Compact Footprint
Features and Benefits
Six engineered strengths that deliver six distinct benefits for your production cycle.

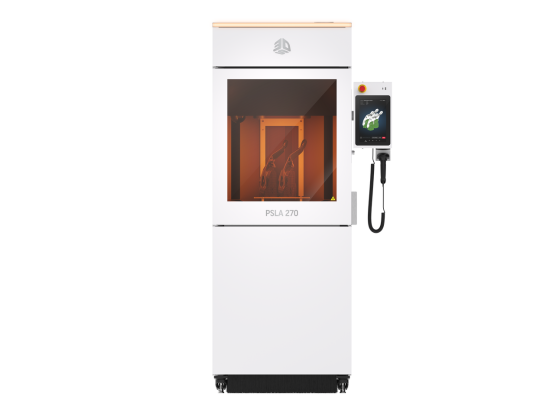

Printer Specifications
Advanced performance, capacity, and precision for scalable production.
- Build Volume (xyz) / Max
Part Size (including supports): 242 x 265 x 300 mm - Technology: Projectors over vat
- Projectors: 2x 7-watt, 90 µm combined 3840 x 2160 dpi
- Wavelength: 405 nm
- Resolution: 90 µm pixel size
- Accuracy: +/- 100 µm < 25 mm, +/- 0.2% > 25 mm
- Layer Thickness: 50-150 µm (material dependent)
- Speed: Up to 38 mm / hour (material dependent)
- Vat Capacity: 55 L
- Interface: 10” PCAP touchscreen, ethernet, camera with
remote UI access & stream to browser - Operating Environment: 19 – 28 C (64-82 F), 20-55% humidity
- Power Required: 110-240VAC 50/60Hz Single Phase, 10A
- Dimensions (doors closed): 71 x 73 x 183 cm / 28 x 29 x 72 in
- Floor Space (occupied): ~0.51 sq m / 5.5 sq ft
- Weight (printer + vat empty): 181 kg / 400 lbs + 45.4 kg / 100 lbs estimated
Materials
Power Your Prints: Premium Materials for Every Need
Figure 4 EGGSHELL-AMB 10
Figure 4 EGGSHELL-AMB 10 is a process-optimized 3D printing material for sacrificial tooling, designed to withstand high-temperature silicone injection while breaking away easily, enabling precise casting of silicone, metals, and ceramics with excellent detail.
Figure 4 F3 Orange
Figure 4 F3 Orange delivers high‑resolution, distinguishable parts with excellent surface finish and rigid mechanical properties. With good heat resistance, it’s ideal for robust functional testing, form‑fit prototypes, and versatile industrial applications.
Figure 4 FLEX-BLK 20
Figure 4 FLEX‑BLK 20 is a flexible, fatigue‑resistant black 3D printing plastic with excellent impact strength, durability, and production‑like polypropylene feel, ideal for functional prototypes, enclosures, assemblies, and short‑run production parts requiring long‑term stability.
Figure 4 HI TEMP 300-AMB
Figure 4 HI TEMP 300C AMB is an ultra‑high temperature resistant, rigid translucent 3D printing plastic with heat deflection above 300 °C, engineered for demanding thermal environments like HVAC, motor enclosures, molds, and high‑temperature functional parts.
Figure 4 PRO-BLK 10
Figure 4 Pro BLK‑10 is a production‑grade additive manufacturing material with thermoplastic‑like mechanical properties and long‑term environmental stability, ideal for durable functional parts, end‑use components, and high‑performance prototyping.
Figure 4 Rigid Composite White
Figure 4 Rigid Composite White is a filled 3D printing resin that delivers high stiffness and rigid parts quickly with minimized post‑processing, ideal for durable functional prototypes, tooling, and production components requiring excellent dimensional stability.
Figure 4 Rigid Gray
Figure 4 Rigid Gray is a production‑grade, high‑contrast gray 3D printing plastic with balanced thermal and mechanical properties, long‑term stability, and excellent surface finish—ideal for durable housings, covers, prototypes, and detail‑rich end‑use parts.
Figure 4 Rigid White
Figure 4 Rigid White is a production‑grade opaque white 3D printing plastic offering smooth surface finish, long‑term stability, and durable clean color—ideal for same‑day parts, prototypes, and end‑use components requiring consistent performance.
Figure 4 Tough 60C White
Figure 4 Tough 60C White is a production‑grade stiff white 3D printing plastic with excellent impact strength, elongation, and tensile strength, offering long‑term environmental stability and bright color—ideal for functional, load‑bearing parts and durable end‑use components.
Figure 4 Tough 75C FR Black
Figure 4 Tough 75C FR Black is a high‑resolution, production‑grade flame‑retardant 3D printing material with UL94 V0 fire‑resistance and excellent thermal durability. Engineered for electrical connectors, housings, and critical end‑use parts requiring robust performance.
Applications
Production-Ready Applications Across Industries
3D Sprint®
The PSLA 270 is powered by an intuitive, production-focused software suite that streamlines file preparation, optimizes support strategies, and automates print parameters for consistent high-quality output. Its guided workflows and real-time monitoring ensure accuracy, reduce operator errors and maximize machine uptime.
