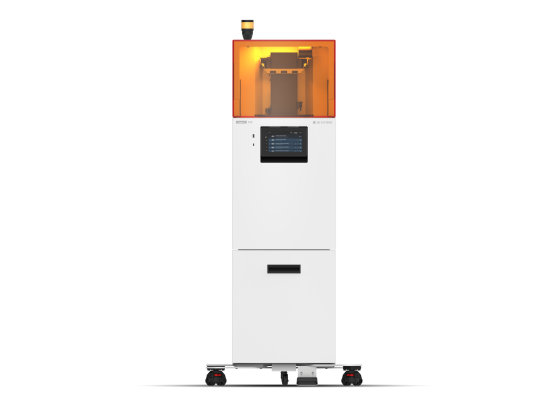

3D Systems Figure 4 135
High-Speed, High-Precision 3D Printing for Tool-Less ManufacturingFigure 4 135 is an advanced digital light printing solution engineered for rapid, accurate, and flexible plastic part production. Designed to replace or supplement traditional injection molding, this system delivers unmatched printing speed, accuracy, and repeatability for both prototypes and low-to-mid volume end-use parts.
With direct digital manufacturing, eliminate long tooling lead times and accelerate your time-to-market from weeks to days — achieving agile production without compromising quality or precision.
- Ultra-Fast Printing
- High Accuracy & Repeatability
- Production-Ready Design
Features and Benefits
Advanced Features Designed for Precision, Speed, and Productivity
Printer Specifications
Engineered for Accuracy, Speed, and Scalability
- Build size: 135 x 76 x 165 mm
- Resolution: 50 µm pixel size: Combined with edge
smoothing from 3DSprint, it provides very sharp,
intricate details - Accuracy: 50 µm <25 mm, +/- 2 µm for every
additional mm - Layer thicknesses: 20, 30 and 50 µm
- Speed: Maximum print speed of up to 70 mm per
hour depending on material in use - Software: Industry-leading 3D Sprint print
management software plus add-ons - Reliability & Repeatability: In benchmark studies,
it is capable of single digit standard deviations of
+/- 50 µm tolerance with a Cpk greater than 3 - Materials: Compatible with industry’s only AM resin
featuring RTI Electrical rating at 150C at 0.4mm, 0.75
mm and 3 mm. Auto-fill material options available
Materials
Power Your Prints: Premium Materials for Every Need
Figure 4 EGGSHELL-AMB 10
Figure 4 EGGSHELL-AMB 10 is a process-optimized 3D printing material for sacrificial tooling, designed to withstand high-temperature silicone injection while breaking away easily, enabling precise casting of silicone, metals, and ceramics with excellent detail.
Figure 4 FLEX-BLK 20
Figure 4 FLEX‑BLK 20 is a flexible, fatigue‑resistant black 3D printing plastic with excellent impact strength, durability, and production‑like polypropylene feel, ideal for functional prototypes, enclosures, assemblies, and short‑run production parts requiring long‑term stability.
Figure 4 HI TEMP 300-AMB
Figure 4 HI TEMP 300C AMB is an ultra‑high temperature resistant, rigid translucent 3D printing plastic with heat deflection above 300 °C, engineered for demanding thermal environments like HVAC, motor enclosures, molds, and high‑temperature functional parts.
Figure 4 High Temp 150°C FR Black
Figure 4 High Temp 150C FR Black is a rigid, UL94 V0 flame‑retardant 3D printing material with high heat deflection above 150 °C and long‑term stability, ideal for durable end‑use parts, electrical housings, and heat‑resistant production applications.
Figure 4 JCAST-GRN 20
Figure 4 JCAST‑GRN 20 is a next‑generation, high‑contrast green 3D printing resin engineered for precise, detailed jewelry master patterns and direct casting with minimal ash and residue. Ideal for accurate, repeatable gypsum investment casting workflows.
Figure 4 PRO-BLK 10
Figure 4 Pro BLK‑10 is a production‑grade additive manufacturing material with thermoplastic‑like mechanical properties and long‑term environmental stability, ideal for durable functional parts, end‑use components, and high‑performance prototyping.
Figure 4 Rigid Gray
Figure 4 Rigid Gray is a production‑grade, high‑contrast gray 3D printing plastic with balanced thermal and mechanical properties, long‑term stability, and excellent surface finish—ideal for durable housings, covers, prototypes, and detail‑rich end‑use parts.
Figure 4 Rigid White
Figure 4 Rigid White is a production‑grade opaque white 3D printing plastic offering smooth surface finish, long‑term stability, and durable clean color—ideal for same‑day parts, prototypes, and end‑use components requiring consistent performance.
Figure 4 Tough 75C FR Black
Figure 4 Tough 75C FR Black is a high‑resolution, production‑grade flame‑retardant 3D printing material with UL94 V0 fire‑resistance and excellent thermal durability. Engineered for electrical connectors, housings, and critical end‑use parts requiring robust performance.
Figure 4 Tough FR V0 Black
Figure 4 Tough FR V0 Black is a tough, production‑grade flame‑retardant 3D printing plastic with UL94 V0 fire‑resistance, excellent mechanical performance, and durability—ideal for end‑use components, electrical housings, and safety‑critical applications requiring rigid, high‑quality parts.
Applications
From Rapid Prototyping to End-Use Production
3D Sprint® Software
The system is powered by 3D Systems’ 3D Sprint® software, providing end-to-end control from file preparation to print management. Advanced automation, material optimization, and error detection features ensure precision and productivity for every build.
