3DCeram MAT Extrusion
Multi-Process Ceramic & Metal 3D PrinterThe M.A.T (Multi Additive Technology) system is an innovative manufacturing platform designed to bring unmatched versatility to ceramic and metal 3D printing. Built on a robust industrial frame, the machine integrates multiple extrusion heads—allowing users to work with filaments, pellets, and technical pastes within a single setup. Engineered to process advanced materials like alumina, zirconia, SiC, and metallic media, the M.A.T empowers R&D labs, engineering institutions, and production environments to scale from prototyping to functional part production.
With an integrated 3-axis CNC module for green-machining before sintering, the system reduces post-processing time and enhances dimensional precision, making it a complete shaping and finishing solution in one machine.
- Multi-Head Extrusion System
- Advanced Material Compatibility
- Integrated Green-Machining CNC
Features and Benefits
A powerful combination of extrusion technologies and CNC machining for complete shaping control
Printer Specifications
A high-precision, multi-technology platform built for industrial-grade ceramic and metal fabrication.
Type of printer: Material Extrusion
Footprint: 60 (W) x 60 (D) x 115 (H) cm
Print volume: 20 (W) x 20 (D) x 20 (H) cm
Machine weight: ca. 90 kg
Supply: 230V, 16A, 50Hz
Materials
Power Your Prints: Premium Materials for Every Need

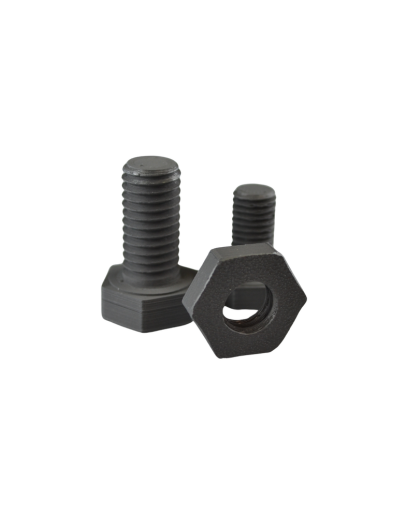

Silicon Carbide (SiC)
A high-performance ceramic offering exceptional hardness, thermal conductivity, and resistance to extreme temperatures and wear—ideal for demanding industrial applications.
Alumina (Al2O3)
Alumina (Al₂O₃) is a versatile ceramic with excellent high‑temperature strength, thermal conductivity, electrical resistivity, hardness, wear resistance, and chemical stability—ideal for advanced industrial parts, electrical insulators, and high‑temperature structural components.

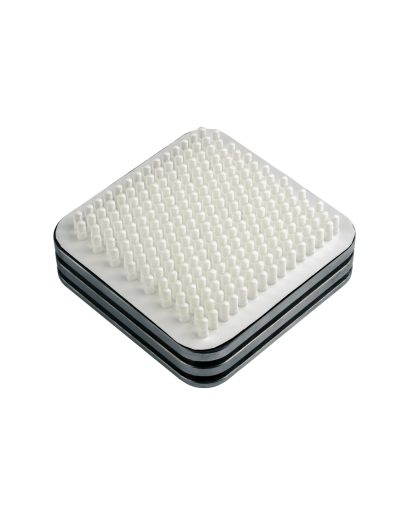

Zirconia (ZrO2)
A tough, high-strength ceramic with superior fracture resistance and thermal stability, suitable for precision and high-stress components.
Titanium (Ti6Al4V)
A lightweight, high-strength alloy with outstanding corrosion resistance and biocompatibility, widely used in aerospace and medical applications.
Stainless Steel (316L & 17-4PH)
Durable metal alloys offering excellent corrosion resistance (316L) and high strength with hardness after heat treatment (17-4PH).
Copper
A highly conductive metal with excellent thermal and electrical conductivity, ideal for heat exchangers, electrical components, and functional prototypes.
Applications
Ideal for functional parts, experimental formulations, academic research, tooling, and ceramic component prototyping.
Softwares
The SmartPrint Control Suite provides a streamlined interface for managing the M.A.T’s multiple extrusion heads and CNC module. Users gain real-time control over temperature, pressure, feed rate, and toolpath strategies, ensuring consistent material flow and high-quality prints. Designed for research and production environments, the software simplifies complex operations through automated calibration and customizable process profiles.
