3D Ceram C900 FLEX
Versatile Ceramic 3D Printer for Prototyping & Small-Series ProductionThe C900 FLEX is a high-performance ceramic 3D printer designed for teams that need precision, flexibility, and the ability to scale from prototype to small-series production. Built upon more than 15 years of 3DCERAM’s expertise, it delivers repeatable accuracy, robust part quality, and a streamlined workflow for diverse ceramic applications.
Proven Industrial Reliability
Multi-Size Build Platforms
Lab Mode for Free Development
Features and Benefits
Key capabilities and advantages that make the C900 FLEX ideal for innovation and small-series ceramic production.
Printer Specifications
Clear and concise technical specifications of the C900 FLEX for engineering and purchasing teams.
- Approx. Dimensions: 1060 x 2250 x 2040 mm (LxPxH)
- Build platform size: 300 x 300 x 100 mm
- Approx. Weight: 1450 kg
- Electrical requirements: 220-240 VAC / 50Hz
- Laser power: 2 kW
- Light source: UV Laser
- Laser spot diameter: ~ 35 μm
- UV Wavelength: 355 nm
- Z axis movement: 0.010 – 0.125 mm
- Optimal room temperature: 20-25°C
- Maximum room temperature variation: 1°C/hour
- Relative humidity: 50%
- Compressed air: 6 bars dry
- Hybrid option: Available
Materials
Power Your Prints: Premium Materials for Every Need
Alumina (Al2O3)
Alumina (Al₂O₃) is a versatile ceramic with excellent high‑temperature strength, thermal conductivity, electrical resistivity, hardness, wear resistance, and chemical stability—ideal for advanced industrial parts, electrical insulators, and high‑temperature structural components.
Zirconia
Zirconia (ZrO₂) is a strong ceramic with excellent mechanical strength, high hardness, wear and chemical resistance, low thermal conductivity, and high temperature stability. It is also colorable for precision jewelry and advanced industrial applications.
Silicore
Silicore is a silica‑based ceramic engineered for foundry cores, offering high mechanical strength and a porous structure that enhances leachability in complex geometries—ideal for precision casting, shell molds, and demanding metal casting applications
Alumina Toughened Zirconia
Alumina‑toughened zirconia (ATZ) is a biocompatible, high‑strength ceramic with excellent wear resistance and thermal shock tolerance—ideal for demanding biomedical implants, prosthetics, and rugged industrial components requiring long‑lasting performance.

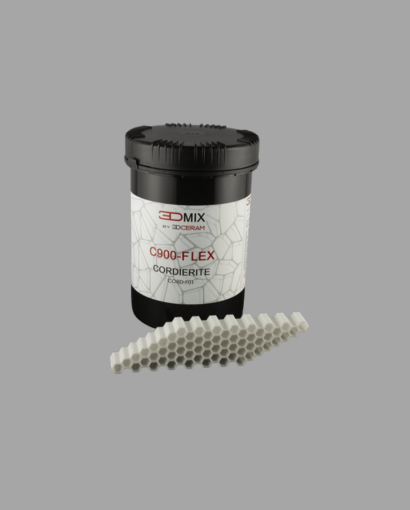

Cordierite
Cordierite ceramic offers low thermal expansion (CTE), low thermal conductivity, and excellent wear resistance, making it ideal for vacuum applications, high‑temperature components, kiln furniture, and parts requiring dimensional stability under thermal cycling.
Zirconia 8Y
8 mol% yttria‑stabilized zirconia (8YSZ) is a high‑performance ceramic engineered for fuel cell applications, offering excellent ionic conductivity, thermal stability, and mechanical strength—ideal for solid oxide fuel cells and advanced energy systems.
TCP
Tricalcium Phosphate (TCP) is a bioceramic widely used for medical implants and bone repair, especially for replicating spinal structures due to its excellent biocompatibility and similarity to natural bone composition.
Silice SiO2
Silica (SiO₂) ceramic offers excellent thermal stability and precision, making it ideal for foundry cores, investment casting applications, and optical components where high temperature resistance, dimensional accuracy, and surface quality are critical.
HAP
Hydroxyapatite/TCP is a bioactive ceramic with a chemical composition similar to natural bone, ideal for biomedical applications. It promotes excellent osteointegration, making it suitable for bone grafts, implants, and regenerative solutions.
Silicon Nitride
Silicon nitride is one of the hardest and most durable technical ceramics, with high resistance to thermal shock, wear, and corrosion. It is used in pumps, valves, semiconductors, and other components.
Aluminium Nitride
Aluminium Nitride (AlN) is a high‑performance ceramic offering exceptional mechanical strength, excellent thermal conductivity, and electrical insulation—ideal for advanced electronics, power modules, substrates, and components requiring reliable heat management and dielectric performance.
Applications
Versatile ceramic 3D printing solutions for industries including aerospace, biomedical, luxury, energy, and R&D.
Softwares
The CERAMAKER Suite provides full control of the C900 FLEX, from slicing and parameter tuning to production management. Its user-friendly interface, advanced material settings, and seamless print monitoring ensure accurate builds and efficient production cycles for both R&D and small-series manufacturing.
