Layer Plastic Deposition (LPD).

Material Innovations Expands Production Applications.

Layer Plastic Deposition (LPD).


The LPD Plus technology designed for BIG industrial-grade results. With dual-extrusion technology, the model and water-soluble support structures are built simultaneously. Printing movable and intricate designs is possible, as all support structures will dissolve in water.

Zortrax M300 Dual.

Properties


Smart and efficient large-volume 3D printing

Highlights


Large workspace: Its large workspace measuring 265x265x300 mm is sufficient to print big models in one go.

Dual-extrusion system: The LPD Plus technology works with two nozzles and a double hot-end.

Blackout response system: The M300 Dual can detect a power outage and resume the printing from the same spot when the power is back on.

Capacitive sensor: The CDS allows automatic calibration of the printer regardless of the type of build-platform installed.

Advanced filament control: The M300 Dual automatically pauses the print when the filament's jammed, run out, or when the nozzle got clogged.

External materials support: Third-party filaments available on spools are fully supported in both single and dual extrusion modes.

Zortrax M300 Plus.

Properties


Designed to reliable operation in multiple long printing cycles typical for a machine of that size.

Highlights


Large workspace: Large workspace, measuring 300 x 300 x 300 mm, is enough to print big models in one go.

Wide filaments compatibility: The printer is designed to support wide range of dedicated and third-party filaments.

Built-in camera: 3D printing process can be remotely monitored through a built-in camera.

Material end detection: The printer will automatically switch into pause mode when it runs out of filament.

Advanced extruder and nozzle: An extruder with a nozzle geometry designed to support 3D printing with flex and nylon-type materials.

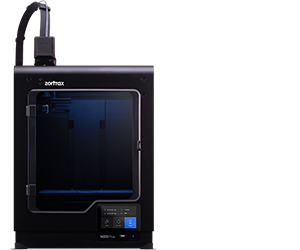

Zortrax M200 Plus.

Properties


Designed for reliable, continuous operation over long periods of time.

Highlights


Material end detection: 3D printing is paused when the material runs out..

Advanced cooling system: Cooling system guarantees the highest efficiency..

Built-in camera: 3D printing process can be monitored remotely..

Wide range of filaments: Wide range of dedicated and third-party filaments is supported.

Materials offered for LPD.

Filaments.

BASF Ultrafuse® PP GF30.

BASF Ultrafuse® PP GF30 is a polypropylene-based composite filament reinforced with a 30% addition of glass fiber. It is characterized by extremely high stiffness and resistance to heat, UV light, and chemicals. PP GF30 is lightweight and provides high dimensional accuracy to printed parts.

BASF Ultrafuse® PAHT CF15.

BASF Ultrafuse PAHT CF15 is an industrial-grade filament consisting of a polyamide base and a 15% addition of micro-carbon fibers. The filament shows high stiffness, high dimensional stability, and chemical resistance. It withstands the temperatures reaching up to 145 °C.

Z-SUPPORT ATP.

Z-SUPPORT ATP is a soluble support filament designed with high thermal stability in mind. Unlike materials based on PVA or BVOH, it does not dissolve in water but in a mild alkaline called Z-SUPPORT ATP Activator

Z-SUPPORT Premium.

Z-SUPPORT Premium is a water-soluble support filament made of butenediol vinyl alcohol co-polymer (BVOH). It's compatible with Z-GLASS, Z-PETG, Z-PLA, Z-PLA Pro, Z-ULTRAT and Z-ULTRAT Plus as it can work in a relatively wide range of printing temperatures. Z-SUPPORT Premium has a very fast dissolution rate and leaves no remnants on the model.

Z-NYLON.

Z-NYLON is a versatile and strong 3D printing filament resistant to high temperatures and various chemicals. It can be post-processed with tools meant for machining metals. Z-NYLON is hard to break and easy to paint as it can be colored with commonly used, acid-based clothing dyes.

Z-FLEX.

Z-FLEX is a thermoplastic polyester elastomer that can be 3D printed at a relatively fast rate of 45mm/s. The filament has great interlayer adhesion and dimensional tolerance falling below +/- 0,02 mm. Z-FLEX is elastic, can bend without breaking, and is resistant to various chemicals including gasoline, ethyl alcohol, butane, and carbon monoxide

Z-PLA Pro.

Z-PLA Pro is a biodegradable 3D printing material with an addition of chalk offering even and matt gypsum-like surface that makes the details more visible. Reduced shrinkage allows to 3D print large models with almost no warping

Z-PETG.

Z-PETG is made of popular PET thermoplasticics enhanced with addition of Glycol to eliminate the brittleness. This industrial-grade material can withstand both UV rays and time. It also exhibits high resistance to oils and greasy substances

Z-ULTRAT Plus.

Z-ULTRAT Plus is a durable ABS-based filament working with the water-soluble support. Use it with Z-SUPPORT Premium to 3D print high-quality end-use parts as well as complex mechanisms. Z-ULTRAT 3D printing material is reinforced for better layer adhesion and higher impact resistance.

Z-PLA.

Z-PLA filament is perfect for precise 3D printing of structurally complex objects, like architectural mock-ups and conceptual models. This biodegradable 3D printing material is derived from environment-friendly sources. Z-PLA offers your models with high-quality details and exceptionally smooth surface.

Z-ULTRAT.

Z-ULTRAT is an exceptionally durable and time-lasting filament. Available in a wide range of colors, Z-ULTRAT is well-suited for all kinds of high-quality applications: functional prototyping, casings, end-use parts, tools and art. The 3D printing material’s surface can be easily post-processed with acetone and mechanical treatment

Z-HIPS.

Z-HIPS 3D printing material is best used for parts and models requiring smooth surface which can be effortlessly post-processed. Its hardness makes it perfect for mechanical prototyping and performance testing. Quality of models 3D printed with Z-HIPS is close to mass-produced objects.

Z-GLASS.

With Z-GLASS transparent filament you can 3D print light-transmitting models and parts ready for final production or precise prototyping. The material is durable, resistant to scratching and remains unaffected by light and chemicals. Z-GLASS is resistant to shrinking.

Z-ASA Pro.

Z-ASA Pro 3D printing filament is designed to withstand adverse environments. The material is highly resistant to the changing weather conditions and UV light, which makes it ideal for outdoor applications, like specialized tools or prototypes tested outside. Low shrinkage and warping of Z-ASA Pro allow you to accurately 3D print large models

Z-ABS.

Z-ABS 3D printing material is a universal solution for economical prototyping and manufacturing. Matt surface of this basic plastic filament enables easy post-processing, both mechanical and chemical. Z-ABS is an excellent choice for beginning users, as well as professional looking for low-cost drafting and testing

Z-ABS 2.

Z-ABS 2 is a durable printing filament, perfect for manufacturing prototypes and end-use parts. Compared to Z-ABS, Z-ABS 2 has higher tensile strength and comes in a wider range of colors. It offers semi-mat finish and high surface quality

Z-PCABS.

Z-PCABS is a durable blend of Polycarbonate and ABS characterized by impact, UV light and temperature resistance. This strong 3D printing filament can also withstand exposure to salts, acids and alkalis and doesn’t change its properties over the course of time

Z-SEMIFLEX.

Z-SEMIFLEX 3D printing material is semi-elastic, resistant to greases and high temperatures. Objects 3D printed with this rubber-like filament can be squeezed and teared without any risk of damaging them. Use Z-SEMIFLEX for tooling and testing in adverse industrial environments or for medical assessment processes.

Z-ESD.

Z-ESD filament grants your models electrostatic discharge protection, making it a reliable choice for electronic industry. Reduced shrinkage and warping allow you to 3D print precise end-use parts and tools. Moreover, Z-ESD material is protected against harmful effects of salts, acids and alkalis
